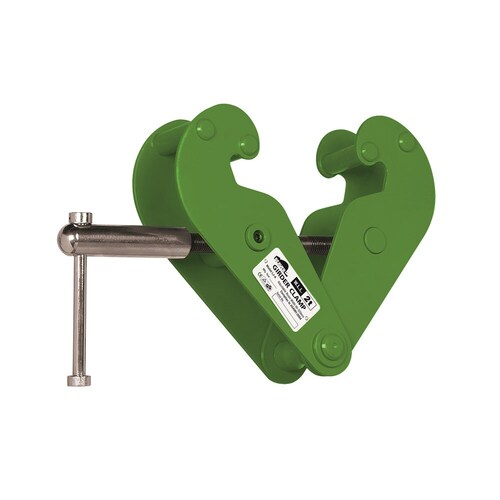

The Beaver girder clamps are manufactured using a robust all-steel construction, and are easy and simple to mount for permanent or temporary mounting. These clamps are designed to provide a quick and versatile point for all your lifting, rigging, and hoisting needs, and comply to AS 4991.

Product Code WLL Colour Code Net Weight Adjustable Beam Width Model Type
270010Y 1t Violet 4kg 75-230mm YC
270020Y 2t Green 5kg 75-230mm YC
270030Y 3t Yellow 9kg 80-320mm YC
270050Y 5t Red 11kg 90-320mm YC
270100Y 10t Orange 18kg 90-320mm YC


All Beaver girder clamps are opertaionally tested to 150% of the working load limit, and come with individual test certificates. Each clamp also has an individial serial number stamped on the body of the clamp and also on the stainless steel identification plate. This number coincides directly to the test certificate of the product for quick and easy tracing and reference.


Product Code WLL A (max) B (min-max) C D E F (min-max) G (min) H K (min-max)
270010Y 1t 241mm 183-325mm 83mm 4mm 220mm 125-162mm 48mm 20mm 13-17mm
270020Y 2t 241mm 183-325mm 88mm 6mm 220mm 125-162mm 48mm 22mm 13-17mm
270030Y 3t 335mm 236-460mm 112mm 8mm 271mm 190-239mm 76mm 24mm 25-38mm
270050Y 5t 335mm 244-457mm 122mm 10mm 271mm 190-239mm 76mm 30mm 26-38mm
270100Y 10t 326mm 268-480mm 143mm 12mm 280mm 181-233mm 67mm 40mm 20-28mm


For more information on our special pricing available bulk/pail sales, please contact our Customer Care team.

(270020Y)

SKU 270020Y
Brand BEAVER
Shipping Weight 5.0000kg
Shipping Width 0.200m
Shipping Height 0.150m
Shipping Length 0.400m
Shipping Cubic 0.012000000m3
Unit Of Measure ea
