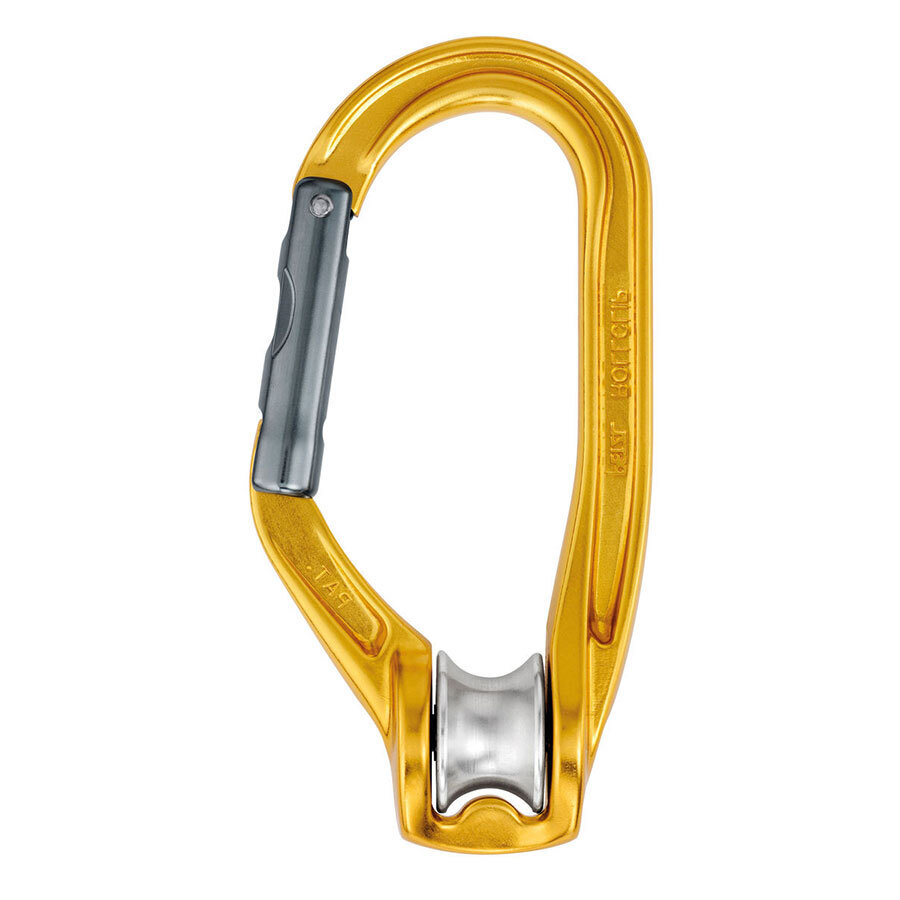

Pulley-carabiner that facilitates installation of the rope when pulley is connected to the anchor

ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Description

  • Easier handling:
    - sheave mounted on sealed ball bearings for excellent efficiency
    - gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
    - may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping
    - Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
  • H cross-section of carabiner:
    - ensures an improved strength-to-weight ratio
    - protects markings from abrasion
  • Available in versions with or without TRIACT-LOCK locking system

Specifications

  • Material(s): aluminum
  • Min. rope diameter: 7 mm
  • Max. rope diameter: 13 mm
  • Sheave diameter: 18 mm
  • Maximum working load: 2 x 2 = 4 kN
  • Efficiency: 85 %
  • Major axis strength: 20 kN
  • Minor axis strength: 8 kN
  • Open gate strength: 7 kN

References

References P74 TL P74
Locking system TRIACT-LOCK Non-locking
Weight 115 g 105 g
Certification(s) CE EN 362, EN 12275, EN 12278, UKCA, EAC CE EN 12275, EN 12278, UKCA, EAC
Gate opening 22 mm 25 mm
Guarantee 3 years 3 years
Inner Pack Count 1 1

(R055-P74)

SKU R055-P74
Brand Petzl
Shipping Weight 0.2500kg
Shipping Width 0.120m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.001800000m3
Unit Of Measure ea
