WHAT AM I USED FOR?

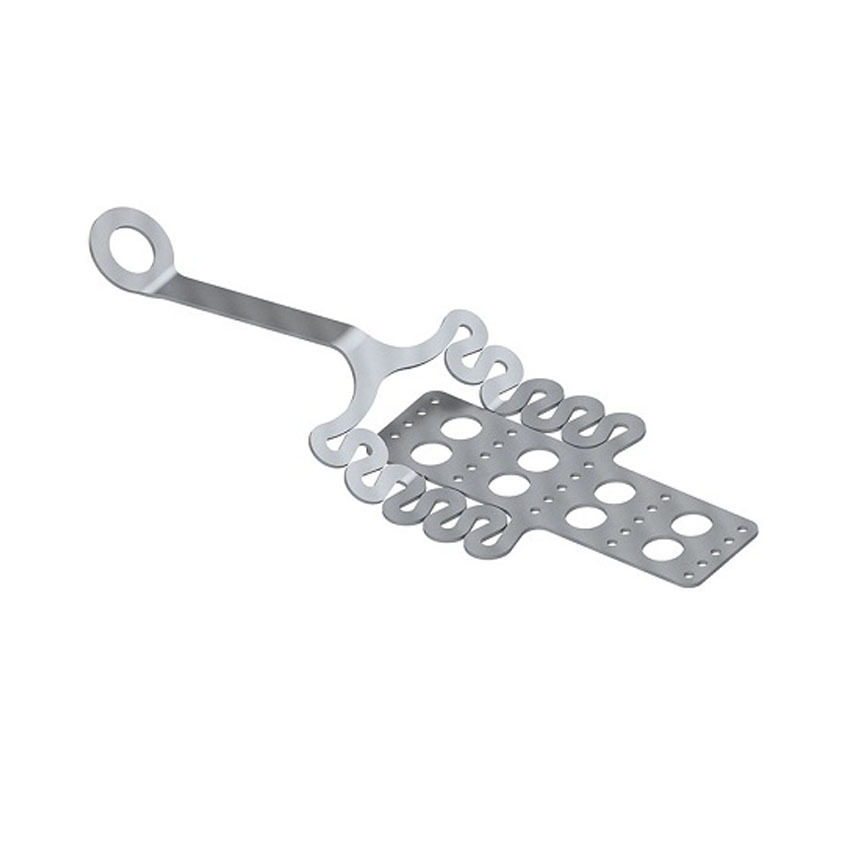

An anchor point designed for use on steel rafters with tiled roof, will arrest from any direction.

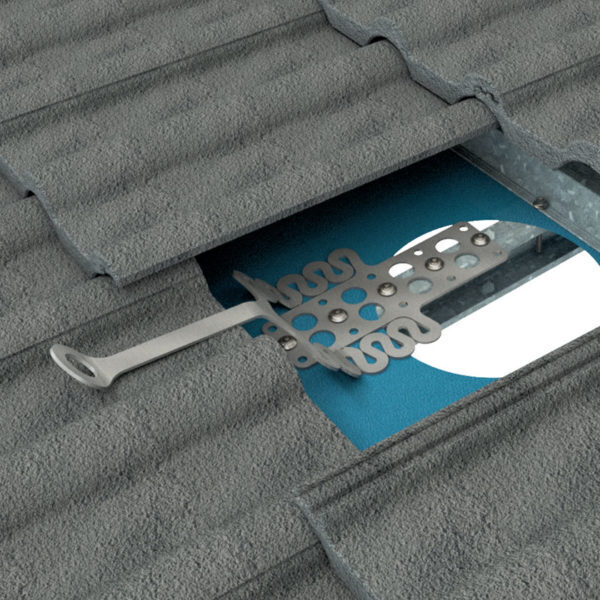

  • Designed for use on steel rafters under tiles, no need to cut sarking, eliminating waterproofing issues.
  • Install with three (3) alternate fixing rows: use 5 x 8mm Bulbtite Rivets (Drill Size 7.8-8.2mm, 27.7mm length, 1.0-9.5mm grip).
  • Low profile reflective design is a plus for any commercial or residential enterprise wanting to maintain an aesthetically pleasing façade.
  • Discreet design, with only the eyelet protruding from the roof.
  • Multi-directional fall protection.
  • Single person roof anchor.
  • Rated at 15kN.
  • Complies with AS/NZS 1891.4.

 *** IMPORTANT*** MUST BE INSTALLED AS PER MANUFACTURER'S INSTRUCTIONS AND BE CARRIED OUT BY, OR UNDER THE SUPERVISION OF A COMPETENT PERSON. PLEASE CLICK THIS LINK AND COMPLETE THE TRAINING BEFORE INSTALLING >> Link to training: https://safetycentre.safetylink.com/

(TILEL001-RIVETS)

SKU TILEL001-RIVETS
Brand SafetyLink
Unit Of Measure ea
